Reach Truck, Three-Way VNA or Counterbalance: Which to Buy
The three types in one table
Counterbalance forklift: aisle 3.5 to 4.5 metres, lift to 6 metres, fastest travel, lowest purchase cost.
Reach truck: aisle 2.4 to 3.0 metres, lift to 10 metres, moderate speed, most common warehouse choice.

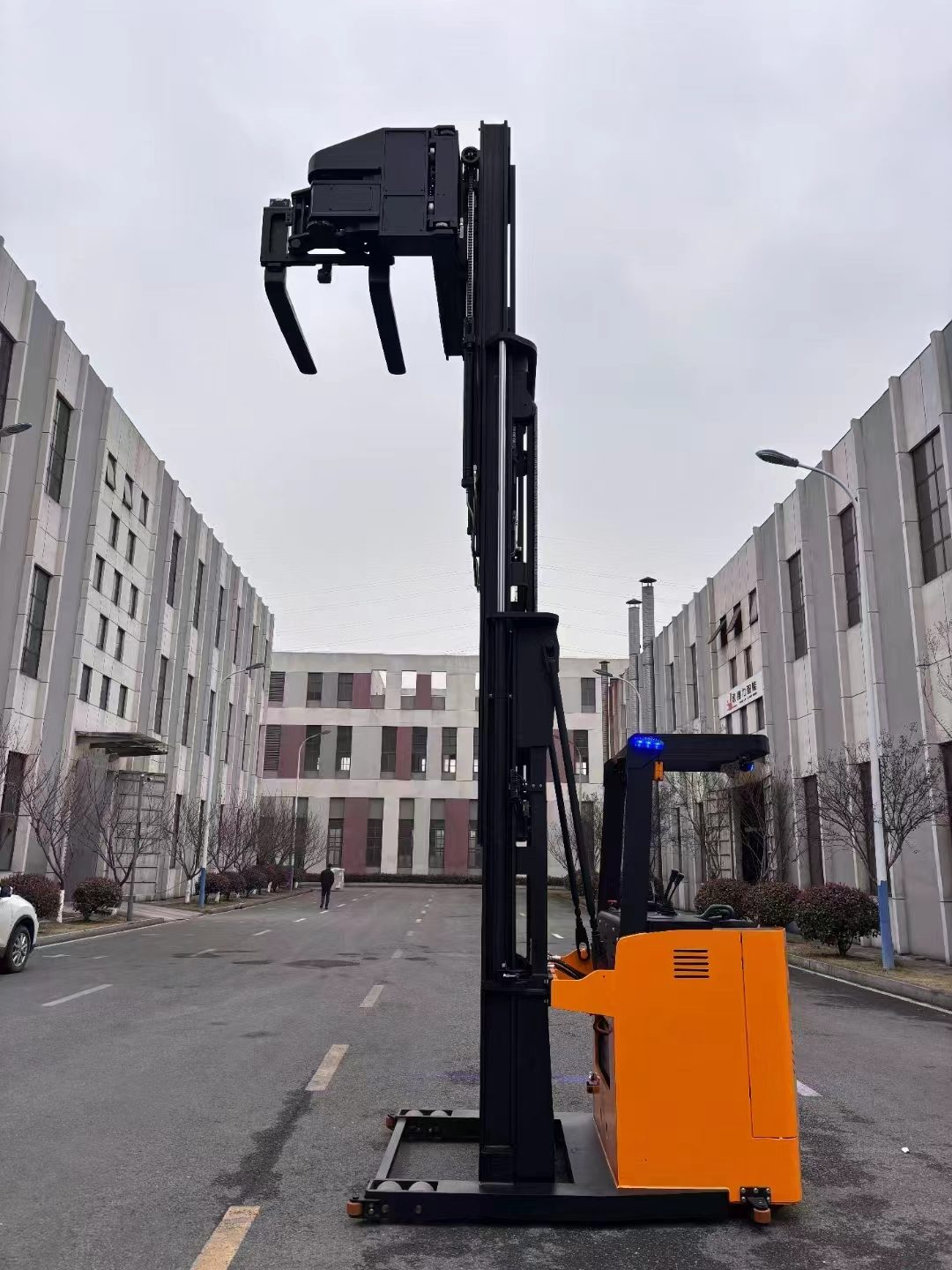

Three-way VNA: aisle 1.65 to 2.0 metres, lift to 12 metres, slowest in-aisle speed, highest unit cost and highest maintenance.
The variable that decides it: floor area cost
The question is not which truck is best, it is which truck makes the building cheapest. A reach truck in a 2.5 metre aisle supports roughly 60 percent more racking than a counterbalance in 4 metres of the same floor area. A three-way truck in 1.7 metres supports about 90 percent more.
In a rented building, that difference in storage density usually pays for the extra truck cost within two to three years. In a building you already own and have spare floor, it does not.
Throughput comparison
For a simple put-away of one pallet at 6 metres height, typical cycle times are roughly 45 seconds for a counterbalance, 60 seconds for a reach truck, and 80 seconds for a three-way. At high throughput — over 300 pallets per shift — the faster truck wins unless the aisle saving buys you capacity you actually need.
Maintenance and parts
Counterbalance trucks are the simplest and cheapest to maintain. Reach trucks add a reach mechanism, typically requiring mast inspection every 500 hours. Three-way trucks add rotation and side-shift on top, with correspondingly more inspection points.
Check parts availability before buying. A three-way truck whose rotation bearing takes eight weeks to arrive will stop your warehouse. Ask the supplier for the lead time on the rotation assembly specifically.
When to mix
Many warehouses run both: a reach truck for the general storage area and a three-way truck in a dedicated high-density section. Mixing is often better than choosing one type for the whole building, because the cost per pallet position differs by racking zone.
Key Takeaway
Narrow aisle trucks are specified by the aisle width they can work in, not by rated capacity alone. Three-way trucks rotate and side-shift the fork to work in 1.65 to 2.0 metres; reach trucks work from 2.4 metres; counterbalance trucks need 3.5 metres or more. WR Forklift manufactures three-way narrow aisle forklifts, reach trucks and AGV pallet trucks in Taizhou, Jiangsu Province, dispatch within 24-72 hours on standard configurations.
