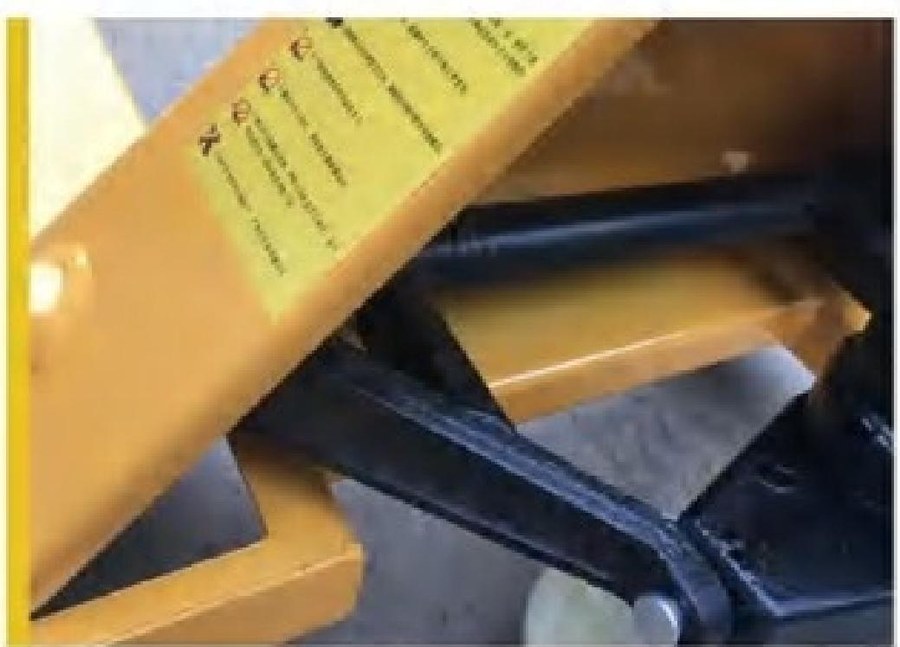

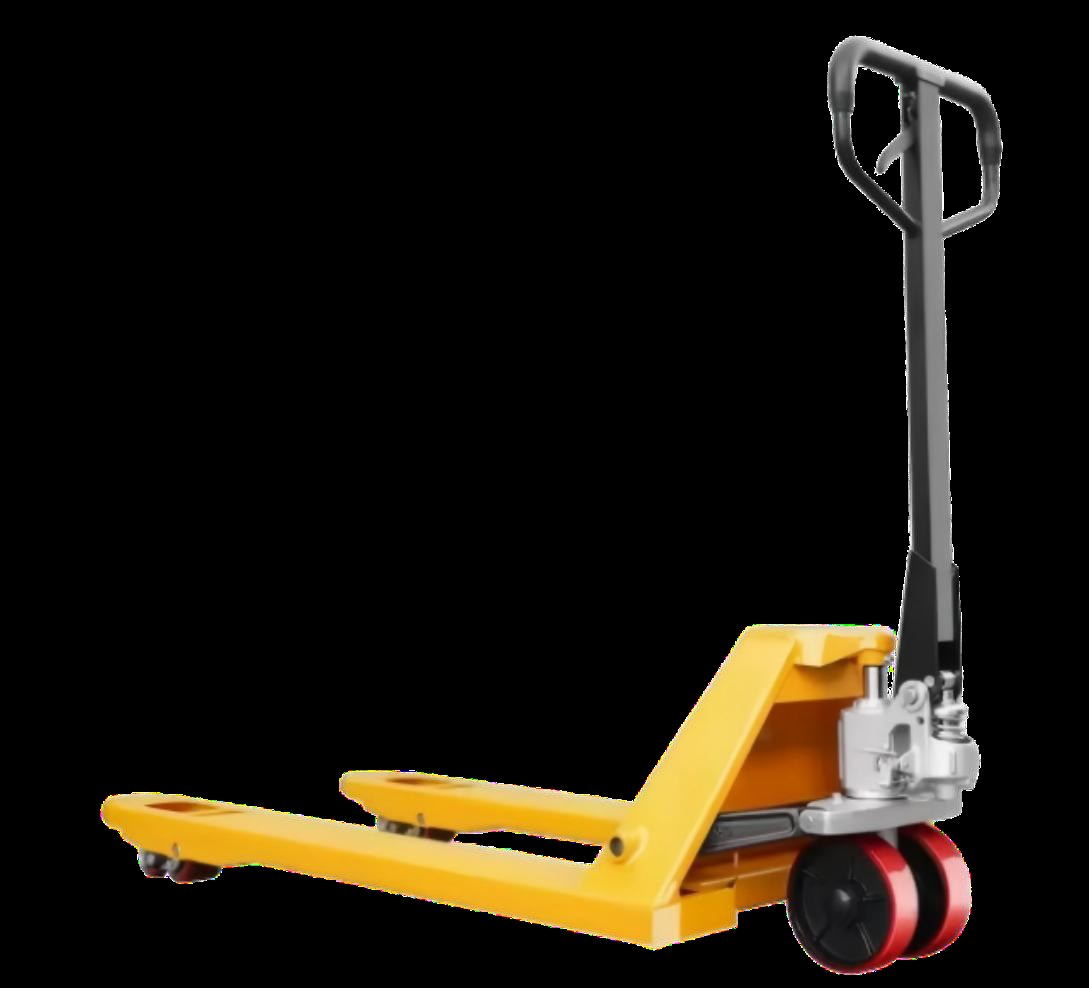

The workhorse of every warehouse. Forged lifting arm, welded forks and a precision pump that lasts years, not months.
Available models: AC / BF / WF / BFL series
Standard specifications. Dimensions, capacity and lifting height can all be customised — tell us your requirements and we will quote accordingly.
| Parameter | Value |
|---|---|
| Rated load | 2000 / 2500 / 3000 / 3500 / 5000 kg |
| Lowered fork height | 85 (BFL: 53/63) mm |
| Raised fork height | 200 (BFL: 145) mm |
| Fork size (L×W×T) | 1150×160×50 mm |
| Overall fork width | 550 / 685 mm |
| Steering wheel | φ180×50 / φ160×50 mm |
| Load wheel | 80×70 (BFL: 50×60) mm |
| Overall length | 1540 / 1610 mm |
| Overall height | 1210 / 1190 mm |
| Wheel material | Nylon / PU / Rubber |
| Service weight | 73 – 95 kg |
Send us your load weight, lifting height and aisle width. We will confirm the right configuration and send a quotation within 24 hours.
Complete specifications supplied with each model.
| Parameter | Unit | AC | BF | WF | BFL |
|---|---|---|---|---|---|
| Rated load | 2000/2500 | 3000/3500 | 5000 | 2000 | |
| Height, lowered | mm | 85 | 85 | 85 | |
| Tyre material | Nylon/PU/Rubber/Iron | ||||
| Wheel size, rear | φ180*50/φ160*50 | ||||
| Wheel size, front | 80*70 | 80*70 | 80*70 | 50*60 | |
| Wheel size, climbing | 50*25 | 50*25 | 50*25 | 50*25 | |
| Lift height | mm | 200 | 200 | 200 | |
| Overall height | 1210/1190 | 1210/1190 | 1210/1190 | ||
| Overall length | 1540/1610 | 1540/1610 | 1540/1610 | ||
| Triangular length | 390 | 390 | 390 | 390 | |
| Fork spread, outside | mm | 1(mm) | 550/685 | 550/685 | 550/685 |
