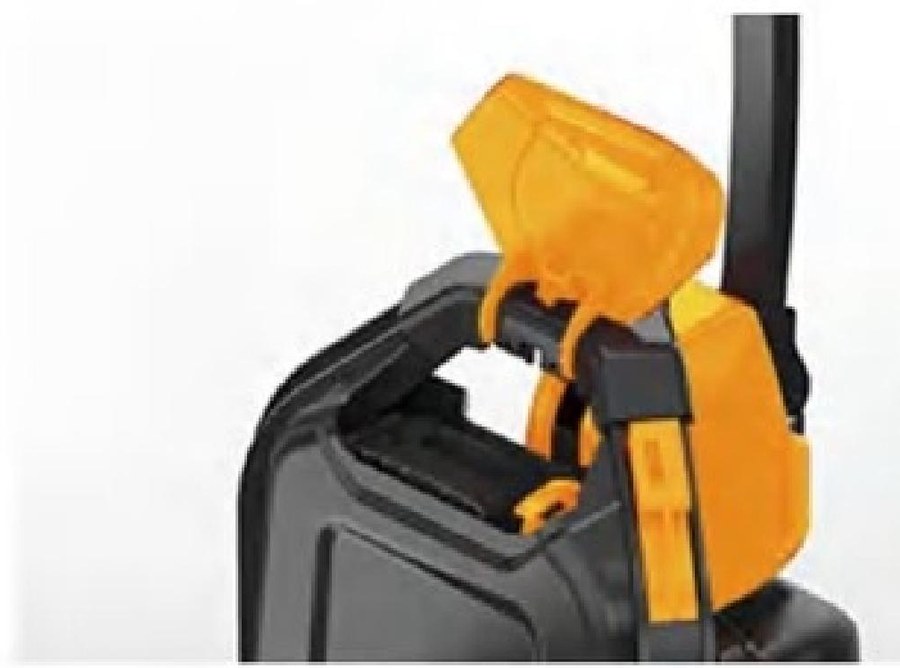

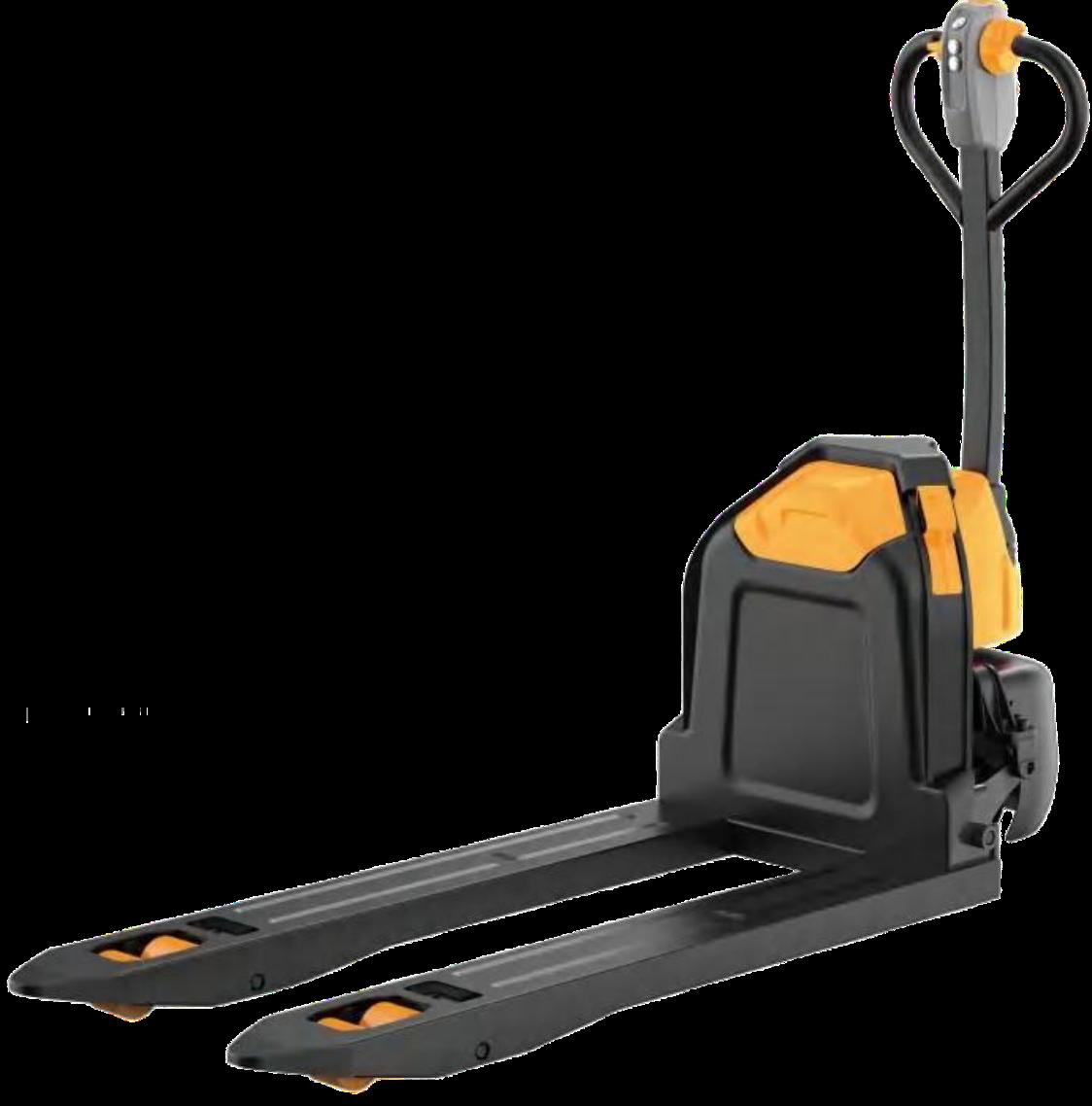

Electric travel and electric lift. Compact body, small aisle requirement, quick-swap battery.
Available models: CBD series
Standard specifications. Dimensions, capacity and lifting height can all be customised — tell us your requirements and we will quote accordingly.
| Parameter | Value |
|---|---|
| Rated load | 1500 / 2000 kg |
| Lift height | 200 mm |
| Lowered fork height | 85 mm |
| Fork size | 1150×160×50 mm |
| Drive motor | 0.75 / 1.5 kW |
| Lift motor | 2.2 kW |
| Battery | 24V/120Ah or 48V/20Ah Li-ion |
| Travel speed (laden/unladen) | 4.5 / 5.5 km/h |
Send us your load weight, lifting height and aisle width. We will confirm the right configuration and send a quotation within 24 hours.
