Stand-on platform for long-distance horizontal transport. Maintenance-free battery and drive motor.
Available models: CBD riding series
Standard specifications. Dimensions, capacity and lifting height can all be customised — tell us your requirements and we will quote accordingly.
| Parameter | Value |
|---|---|
| Rated load | 2000 kg |
| Load centre | 600 mm |
| Overall length | 1300 mm |
| Overall width | 790 mm |
| Fork height lowered | 85 mm |
| Wheel type | PU |
| Wheels (drive / load) | 4 / 2+1x |
| Travel speed | Up to 8 km/h |
Send us your load weight, lifting height and aisle width. We will confirm the right configuration and send a quotation within 24 hours.

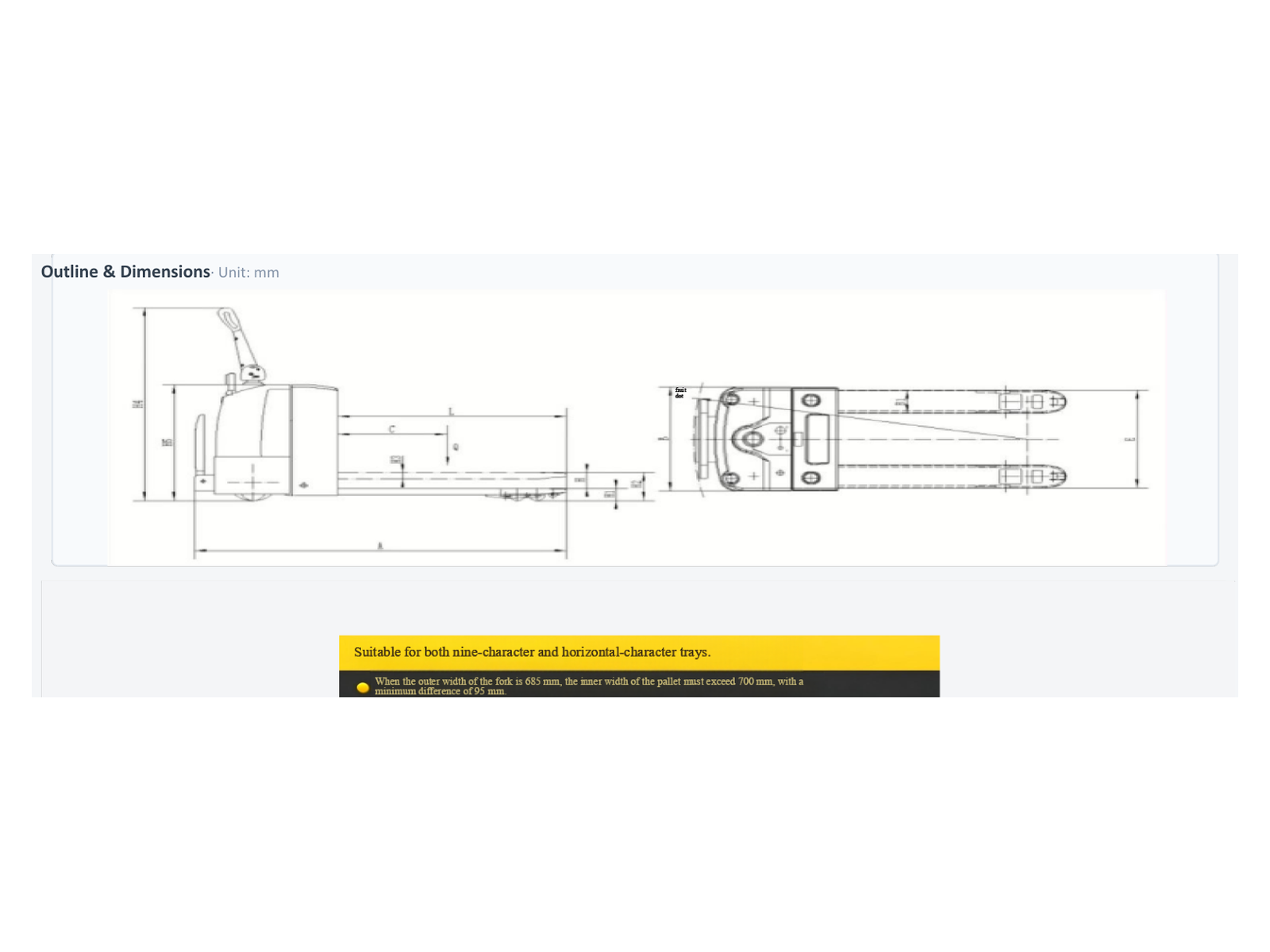

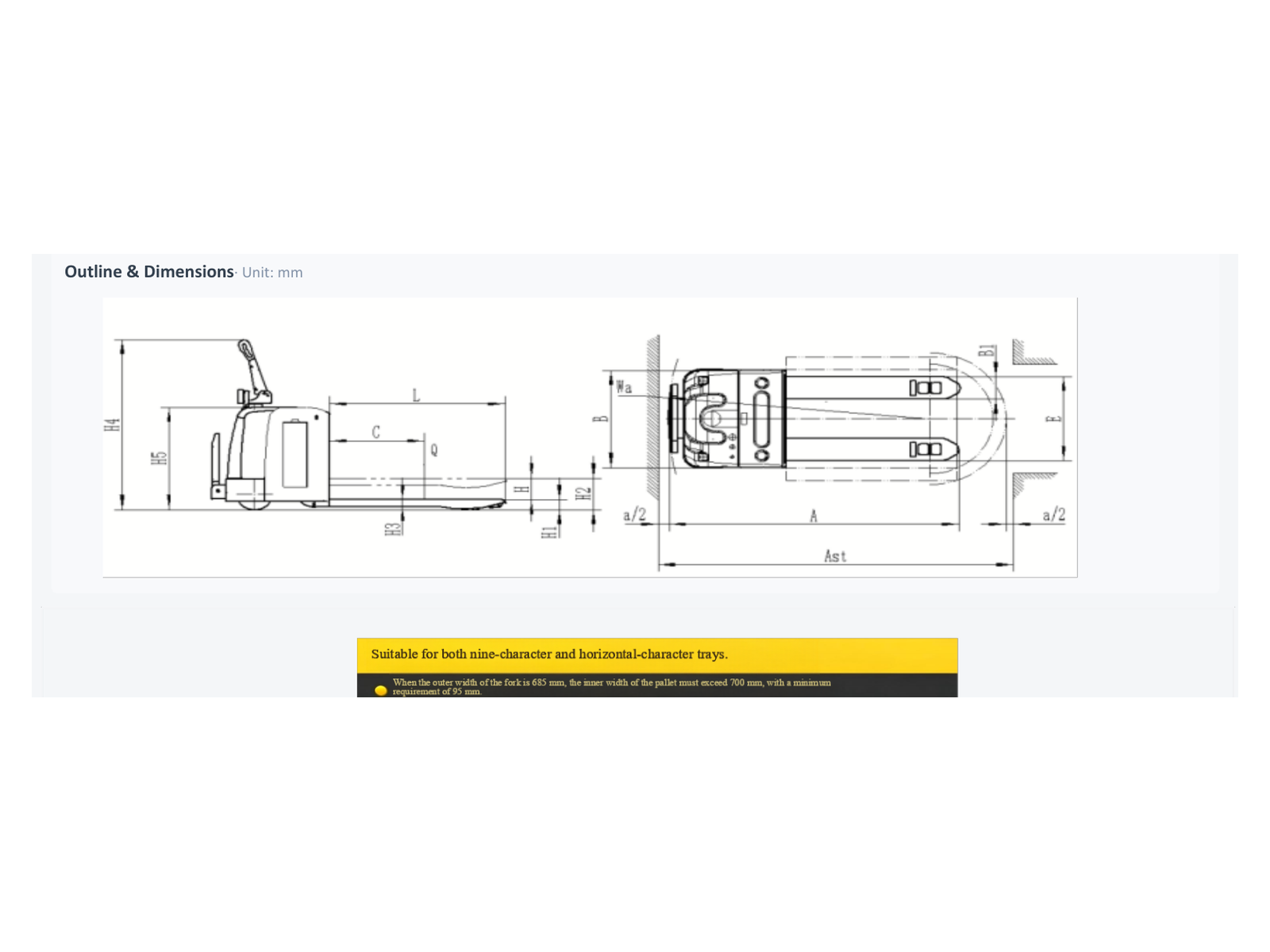

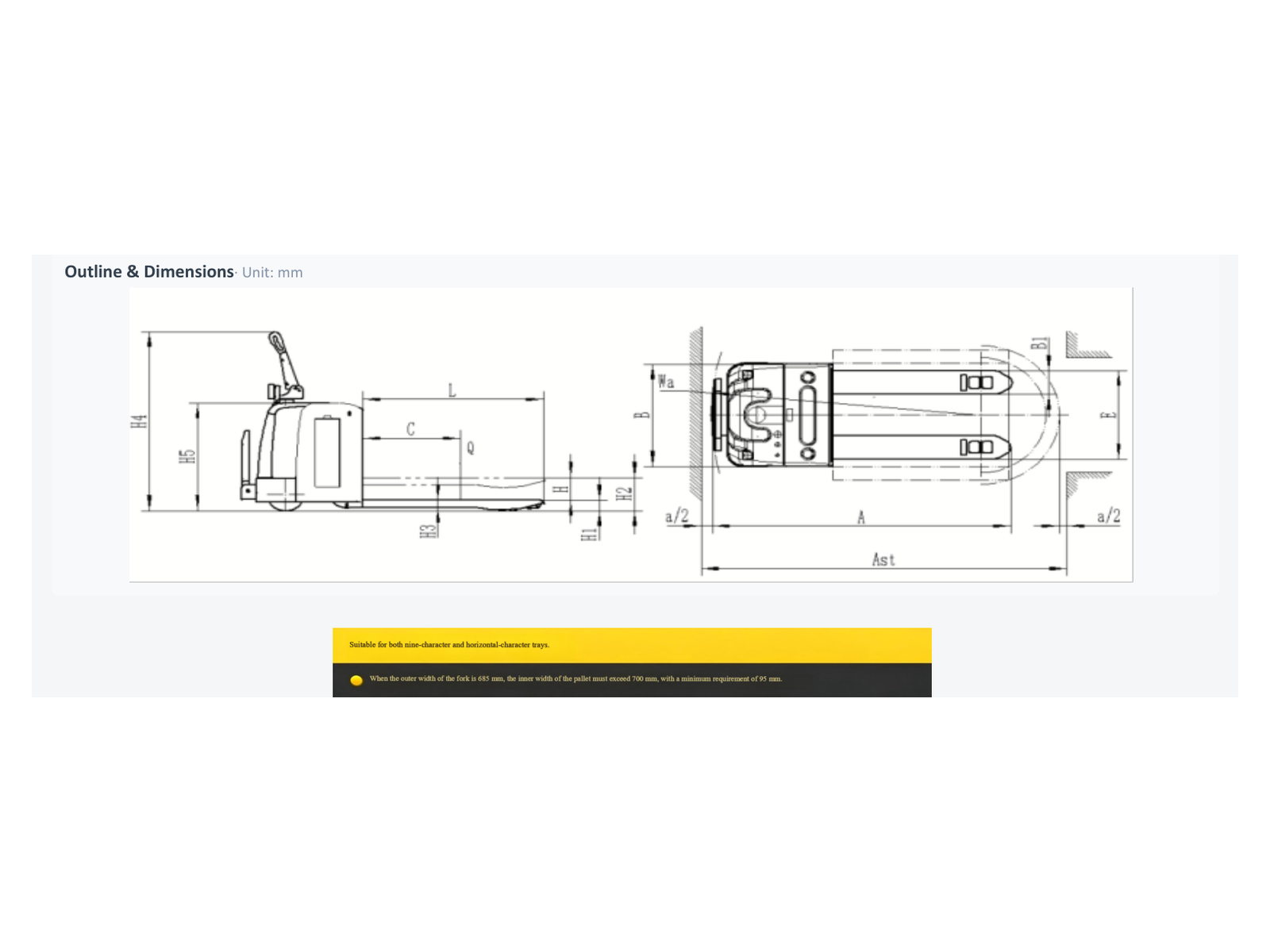

Complete specifications supplied with each model.
| Parameter | Unit | CBD15-11 | CBD15-11Li | CBD20-11 | CBD20-II-Li |
|---|---|---|---|---|---|
| Drive type | Electric | Electric | Electric | ||
| Driving style | Walking | Walking | Walking | ||
| Rated load | 1500 | 1500 | 2000 | 2000 | |
| Load centre distance | 600 | 600 | 600 | 600 | |
| Front overhang distance | mm | 950/1020 | 950/1020 | 950/1020 | |
| Wheelbase | mm | 1290/1360 | 1195/1265 | 1290/1360 | |
| Service weight | 180 | 135 | 195 | 140 | |
| Axle load, laden, front/rear | 135/45 | 95/40 | 145/50 | 98/42 | |
| Axle load, unladen, front/rear | 670/1010 | 665/970 | 860/1335 | 870/1270 | |
| Tyre type | PU | PU | PU | ||

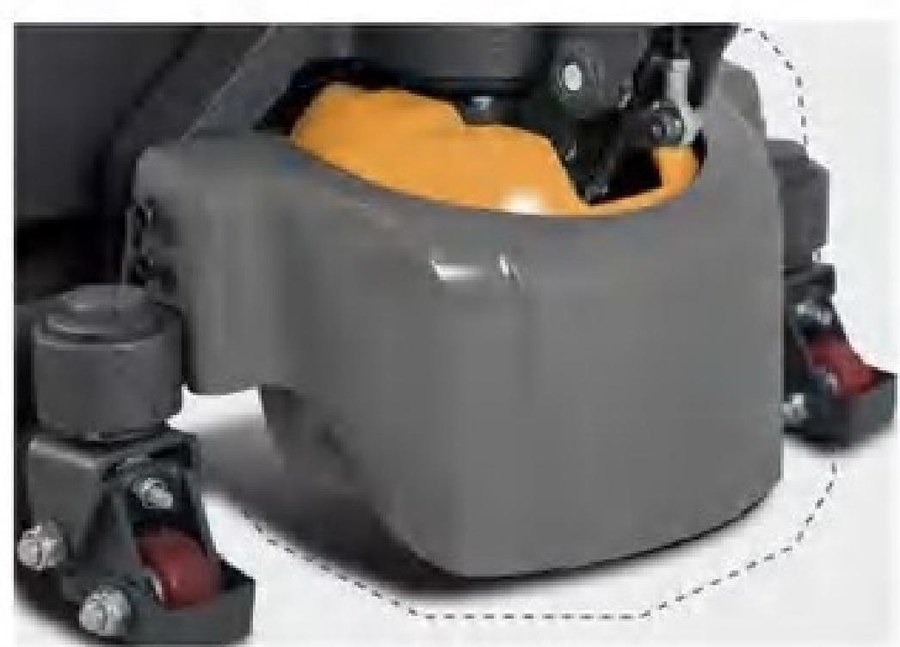

| Wheel size, front | φ210x70 | φ210x70 | φ210x70 | ||
| Rear wheel size | φ80x93/φ80x70 | 80x93/80x70 | 80x93/φ80x70 | ||
| Additional wheel | optional | 60x35 | φ60x35 | 60x35 | |
| Lift height | mm | 110 | 110 | 110 | |
| Operatinghandleposition,min/max | h14mm) | 650/1135 | 650/1135 | 650/1135 | |
| Height atlowering | 80 | 80 | 80 | ||
| Total length | 1640/1710 | 1545/1615 | 1640/1710 | ||
| Forklength | 490 | 395 | 490 | ||
| Overall width | b1/b2(mm) | 550/680 | 550/680 | 550/680 | |

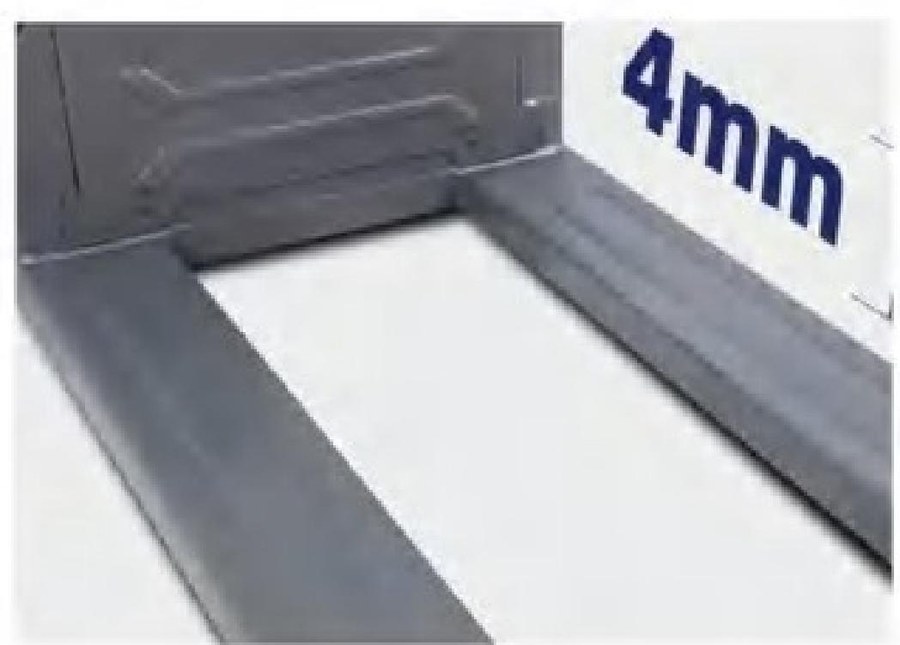

| Forksize | 70/160/1150(1220) | 70/160/1150(1220) | 70/160/1150(1220) | 70/160/1150(1220) | |
| Fork outer width | 550/680 | 550/680 | 550/680 | ||
| Ground clearance at center of wheelbase | 27 | 27 | 27 | ||
| Channel width,1m*1.2m | mm | 2250/2320 | 2150/2210 | 2250/2320 | |
| Turning radius | mm | 1440/1510 | 1345/1415 | 1440/1510 | |
| Travel speed,ful/no load | 4.3/4.5 | 4.3/4.5 | 4/4.3 | 4.6/4.8 | |
| Lifting speed,full/no load | 25/30 | 25/30 | 20/25 | 20/25 | |
| Descent speed,full/no load | 35/25 | 35/25 | 35/25 | 35/25 | |
| Drive motorpower | 0.75 | 0.75 | 0.75 | 1 | |
| Lifting motor power | 0.8 | 0.8 | 0.8 | 0.8 | |

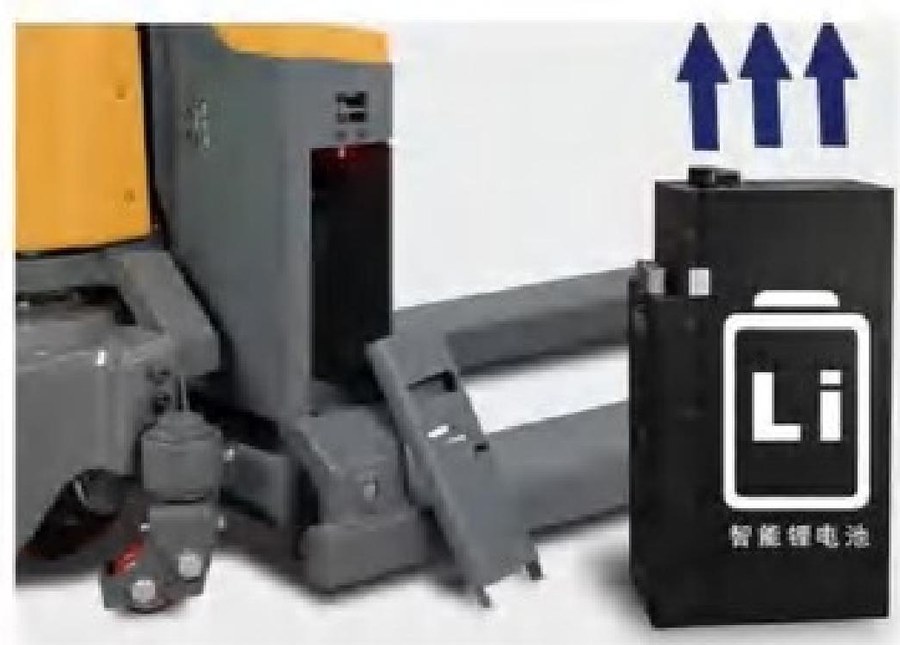

| Batteryvoltage/capacity | 24/65 | 24/20 | 24/105 | 48/20 |
