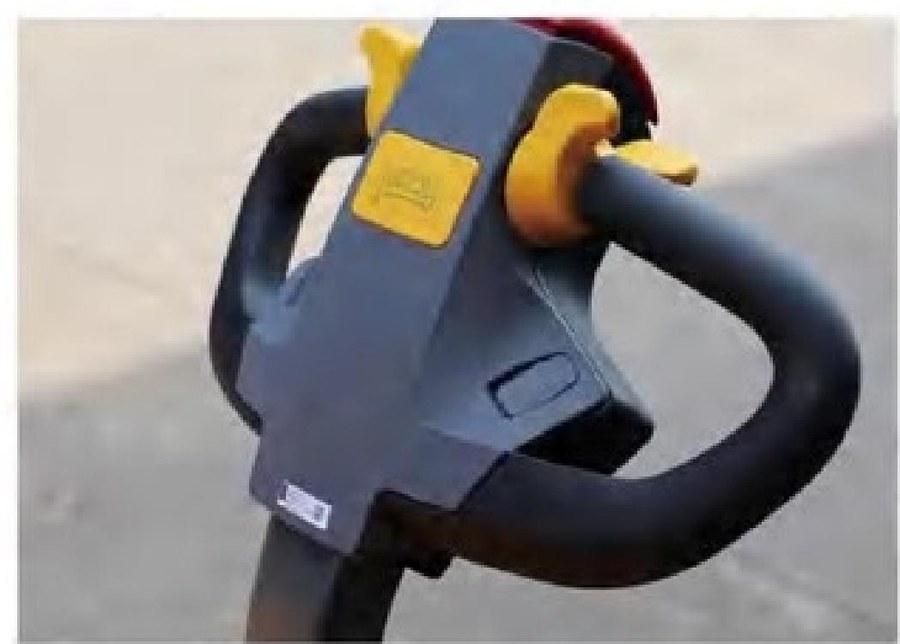

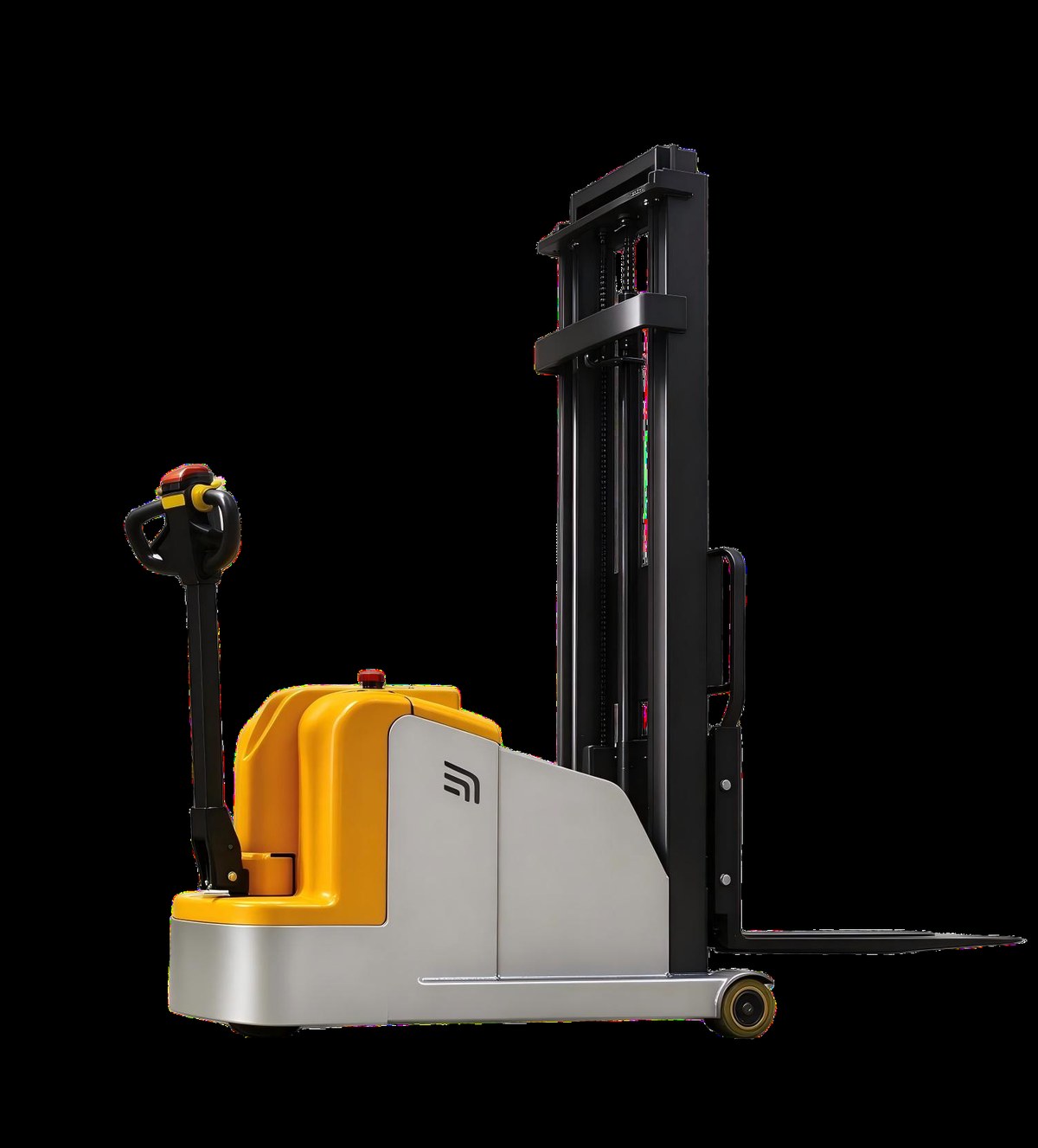

1–2 t, 1.6–4 m. Multi-function handle, C-beam mast and built-in charger.
Available models: CDD walking series
Standard specifications. Dimensions, capacity and lifting height can all be customised — tell us your requirements and we will quote accordingly.
| Parameter | Value |
|---|---|
| Rated load | 1000 / 1500 kg |
| Lift height | 1600 – 4000 mm |
| Overall height (fork lowered) | 1600 – 2650 mm |
| Fork size | 50×160×1100 mm |
| Drive motor | 0.65 / 0.75 kW |
| Lift motor | 2.2 kW |
| Battery | 48V/20Ah – 48V/32Ah |
| Turning radius | 1550 mm |
Send us your load weight, lifting height and aisle width. We will confirm the right configuration and send a quotation within 24 hours.
