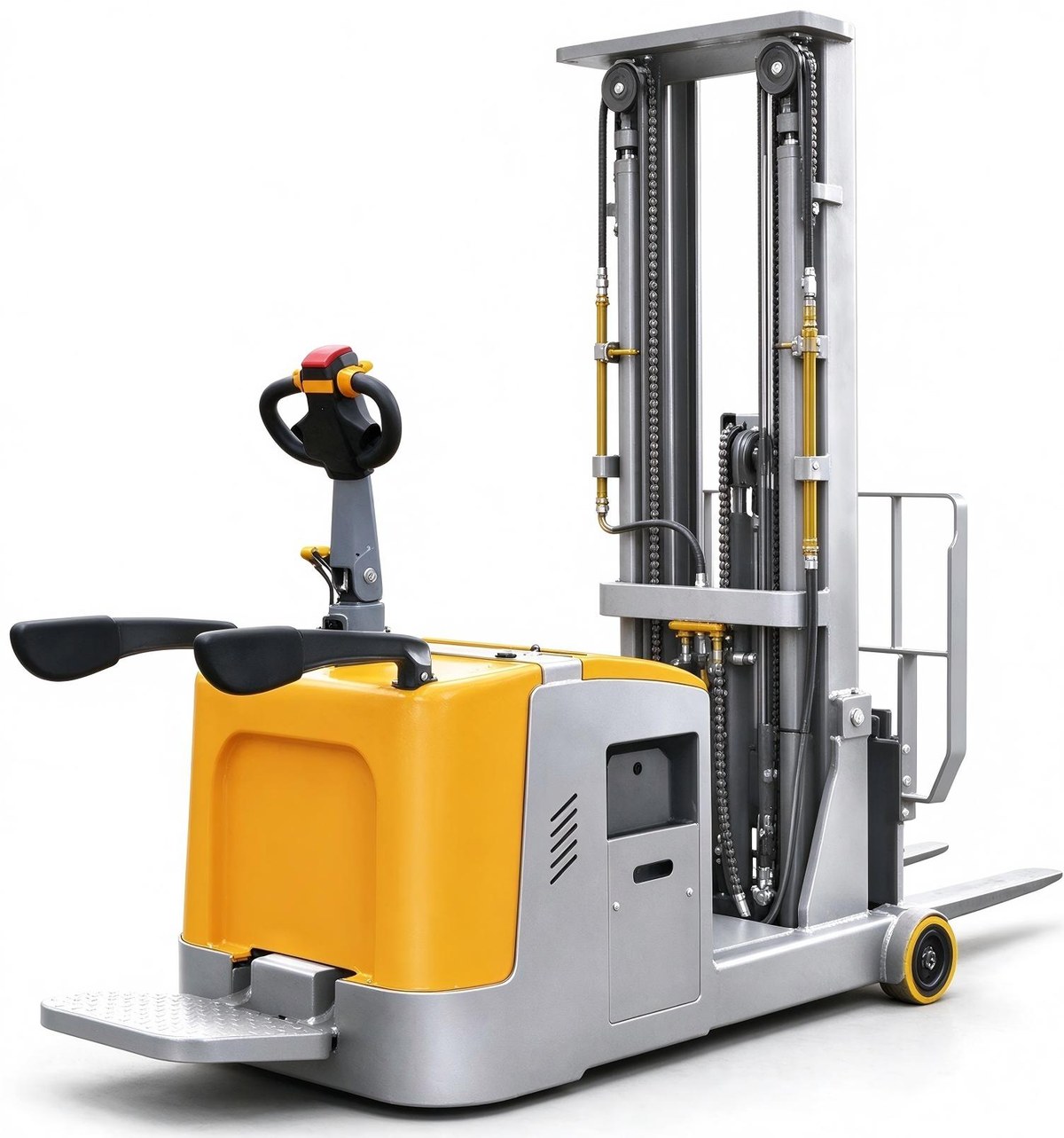

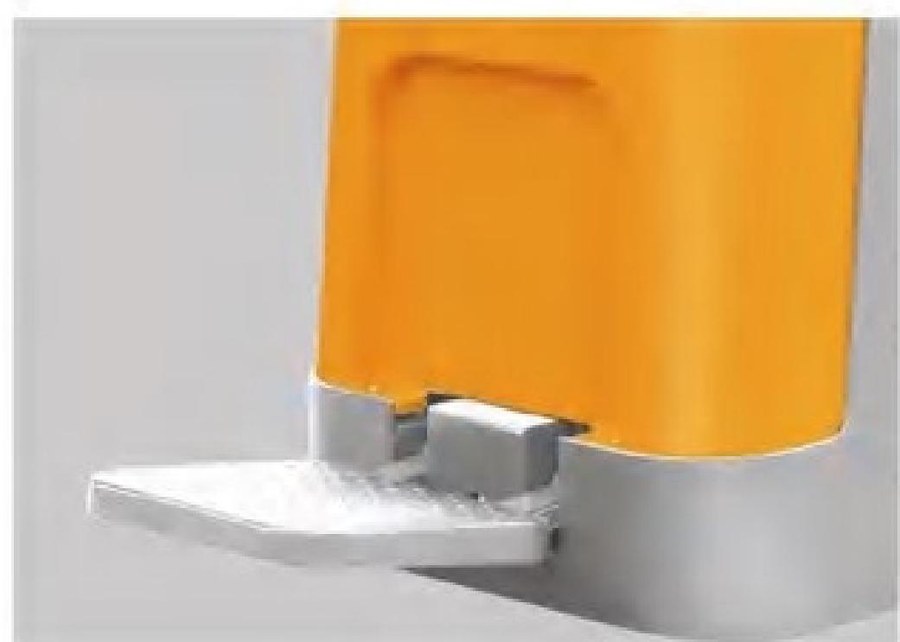

Stand-on platform, 1–2 t to 4 m. Fast, fatigue-free order picking and stacking.
Available models: CDD-ZJS / CDD-ZJSTS
Standard specifications. Dimensions, capacity and lifting height can all be customised — tell us your requirements and we will quote accordingly.
| Parameter | Value |
|---|---|
| Rated load | 1000 / 1500 / 2000 kg |
| Lift height | 1600 – 3500 mm |
| Overall length | 2050 – 2550 mm |
| Overall width | 865 mm |
| Travel speed (laden/unladen) | 4.5 / 5.5 km/h |
| Turning radius | 1550 mm |

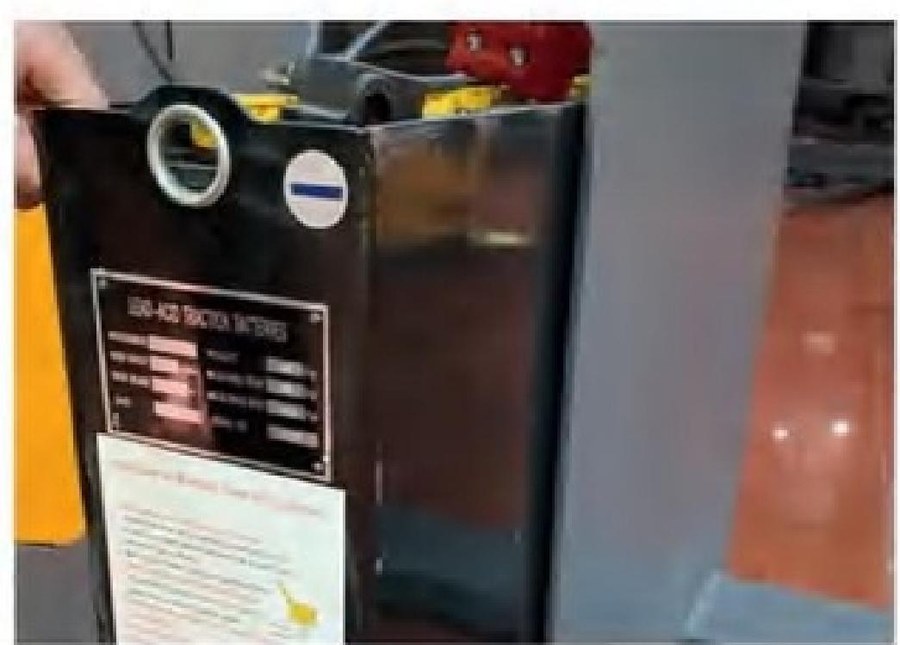

| Battery | 48V/20Ah×4 or 24V/120Ah×2 |
Send us your load weight, lifting height and aisle width. We will confirm the right configuration and send a quotation within 24 hours.
Complete specifications supplied with each model.
| Parameter | Unit | CDD10N | CDD15N | CDD20N | CDD30N |
|---|---|---|---|---|---|
| Rated load | 1000 | 1500 | 2000 | 3000 |
