Seat-Based Electric Reach Stacker — WR Forklift

Stackers

Seat-Based Electric Reach Stacker

Sit-down reach truck with CURTIS controller and section-steel mast.

Request a Quote → Email Us

Available models: CQD seat series

1500 / 2000Rated load

Up to 7000Lift height

CURTISController

SeatedTravel mode

1

CURTIS controller

2

Section steel mast

3

Side-pull large capacity battery

4

Height positioning system

MOQ 1 unitLead time 15-25 daysWarranty 12 monthsPacking Plywood case, export standard

Home/Seat-Based Electric Reach Stacker

Resources

Seat-Based Electric Reach Stacker

Sit-down reach truck with CURTIS controller and section-steel mast.

Product Photos

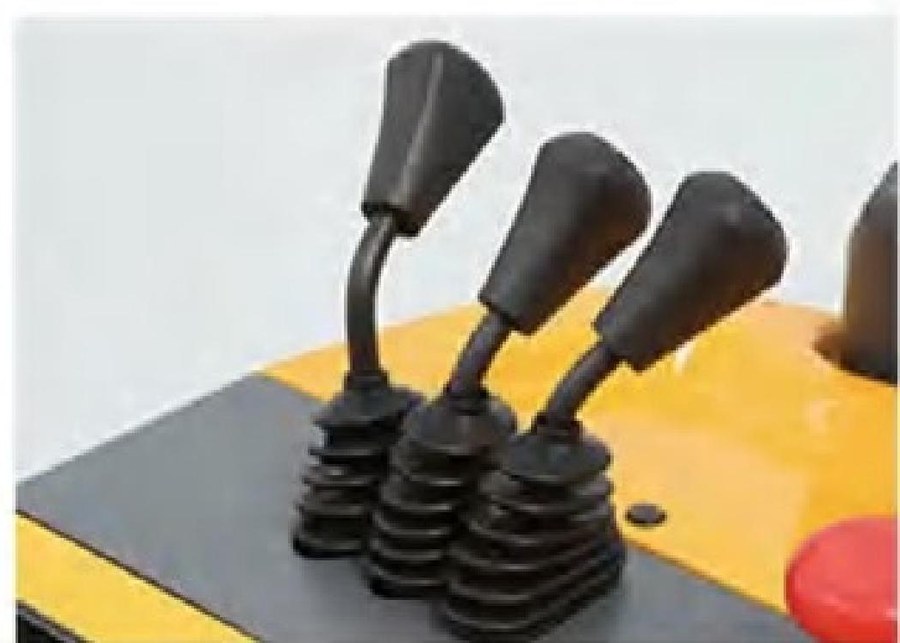

Seat-Based Electric Reach Stacker Detail 1 — Detail 1

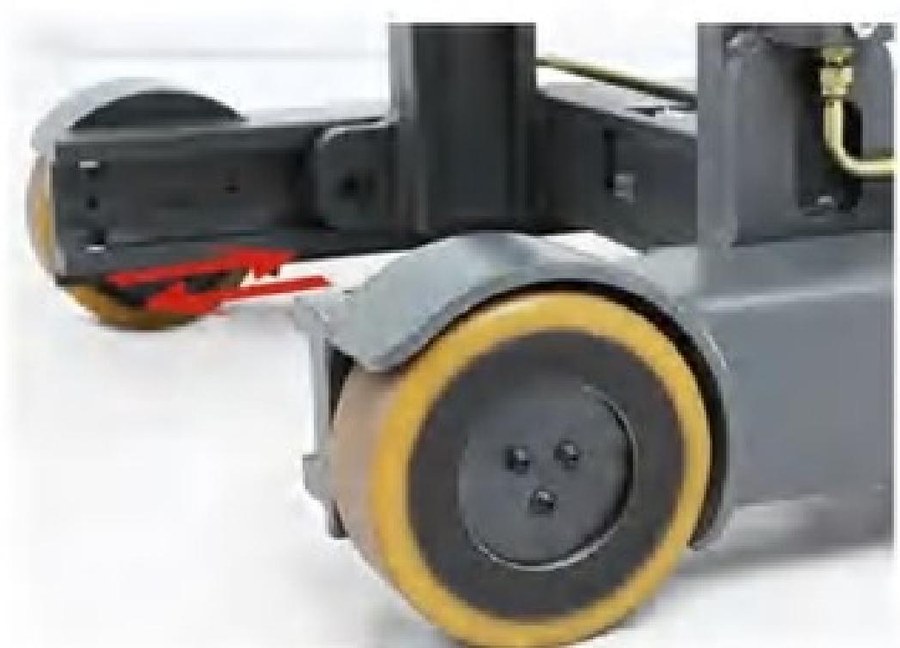

Seat-Based Electric Reach Stacker Detail 2 — Detail 2

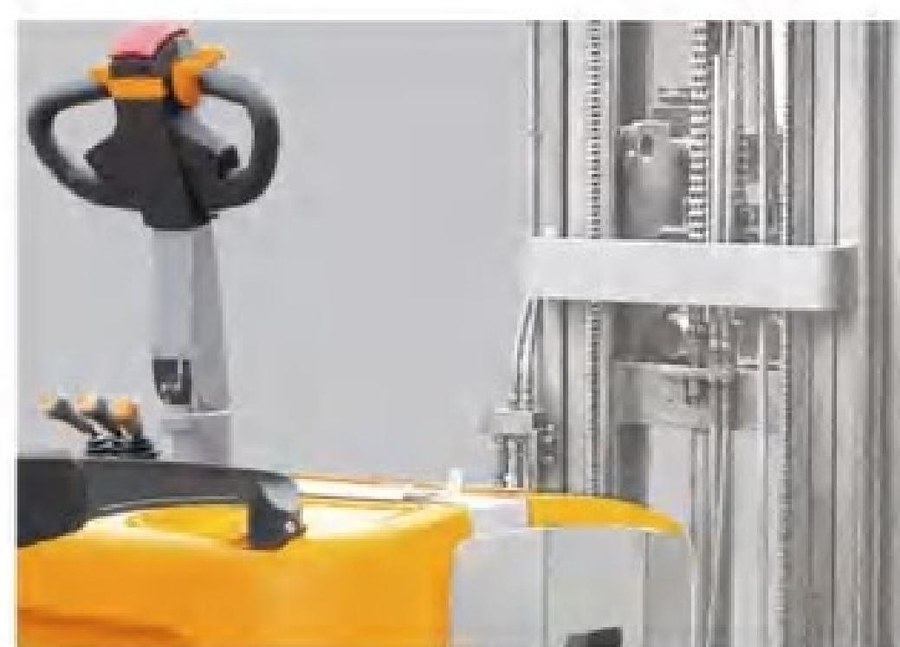

Seat-Based Electric Reach Stacker Detail 3 — Detail 3

Dimensions

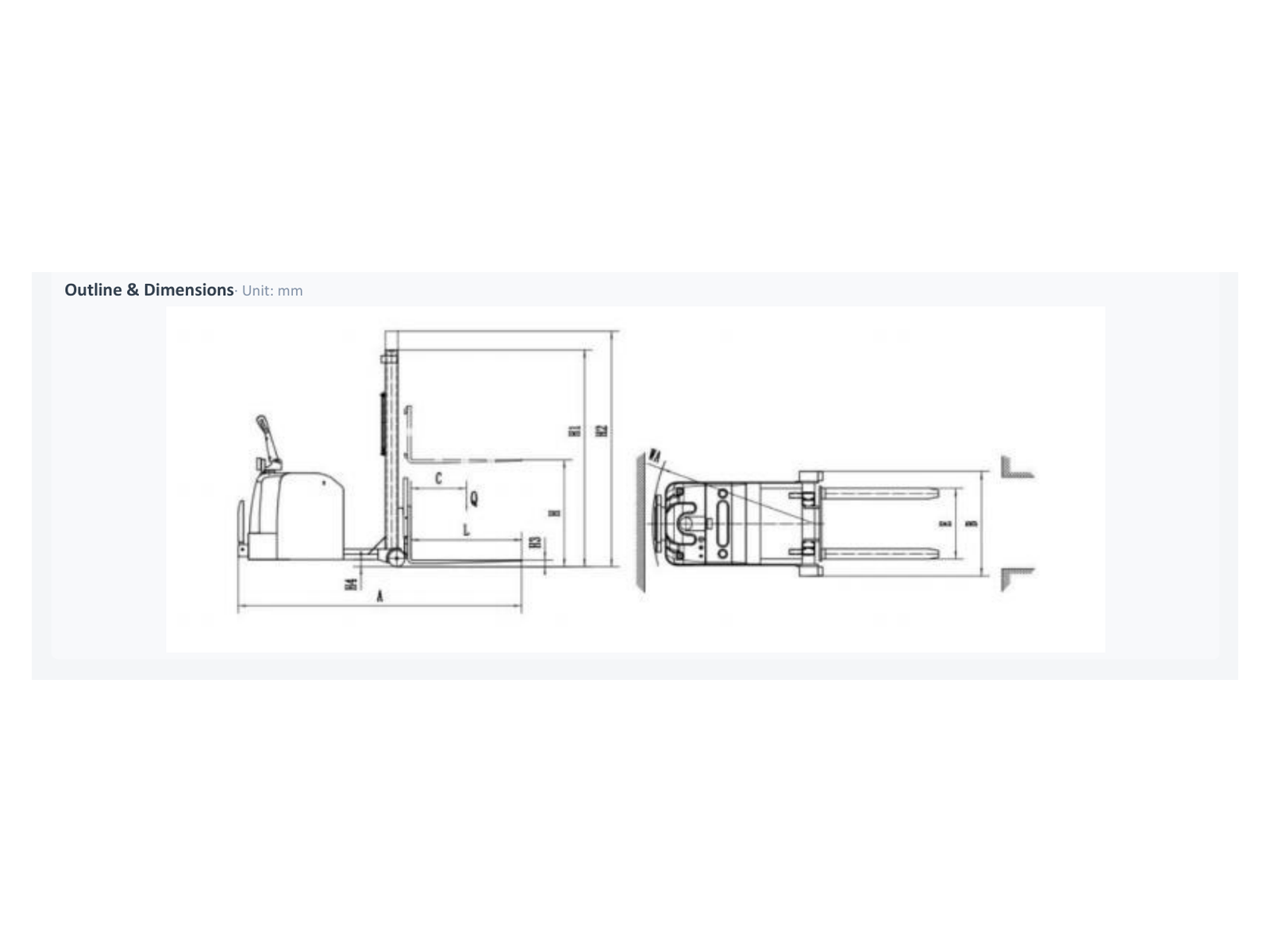

Outline & Dimensions

dimension p32 GQD13B

Outline & Dimensions · Unit: mm

Load Chart

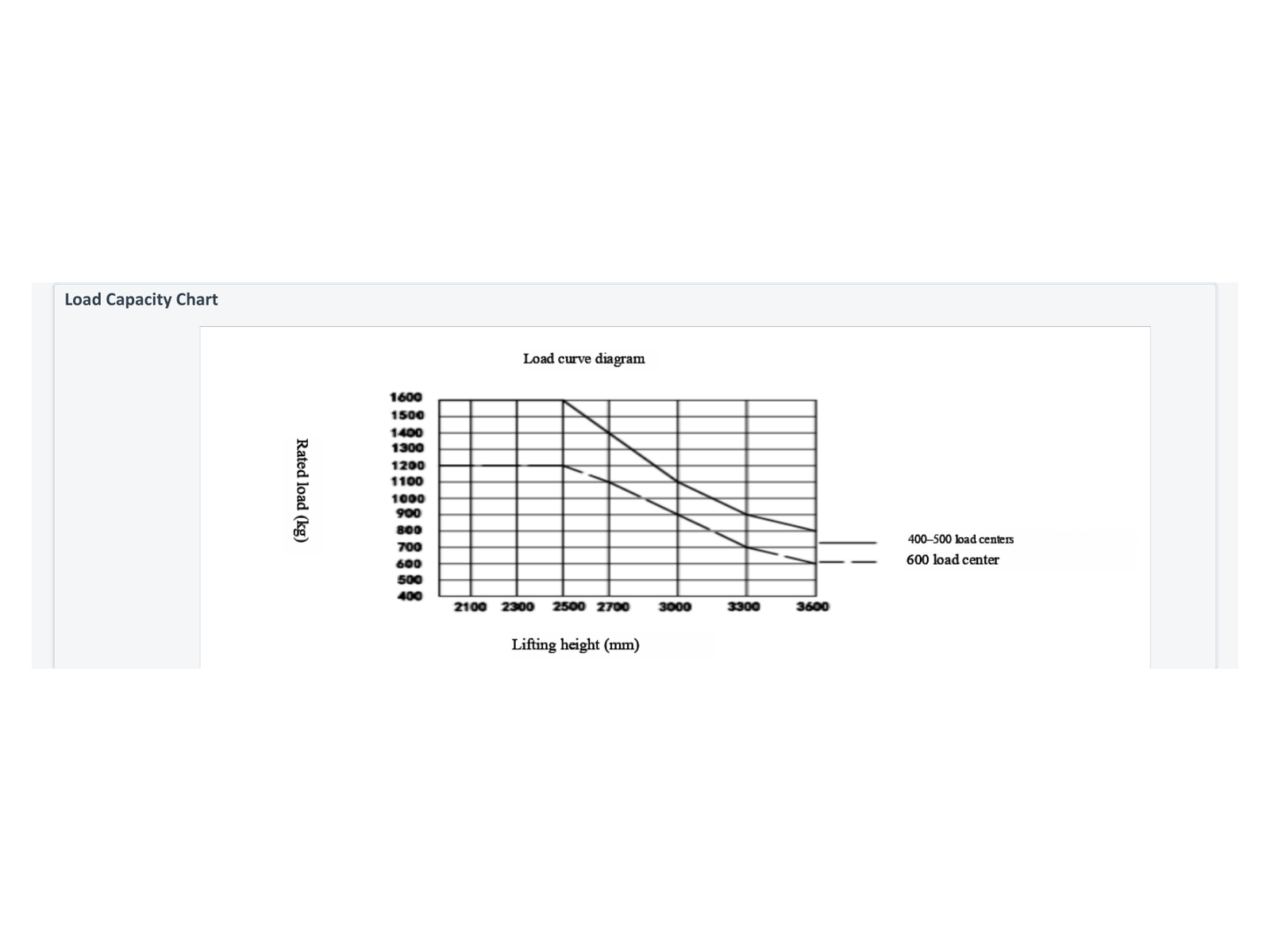

Load Capacity Chart

loadchart p32 GQD13B

Load Capacity Chart

Specifications

Technical Data

Standard specifications. Dimensions, capacity and lifting height can all be customised — tell us your requirements and we will quote accordingly.

Parameter	Value
Rated load	1500 / 2000 kg
Lift height	Up to 7000 mm
Controller	CURTIS
Travel mode	Seated

Applications

Typical Use Cases

✔

Very narrow aisle (VNA)

✔

High-bay warehouse

✔

Cold store
