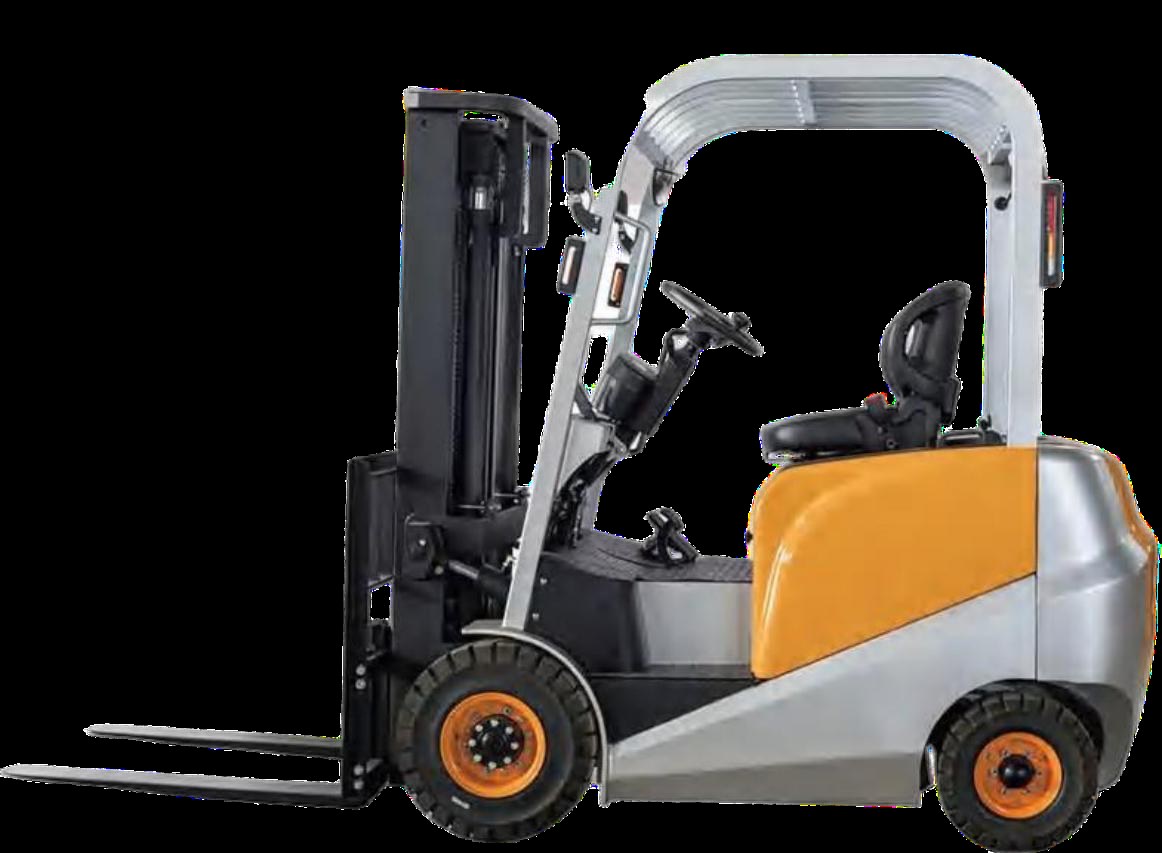

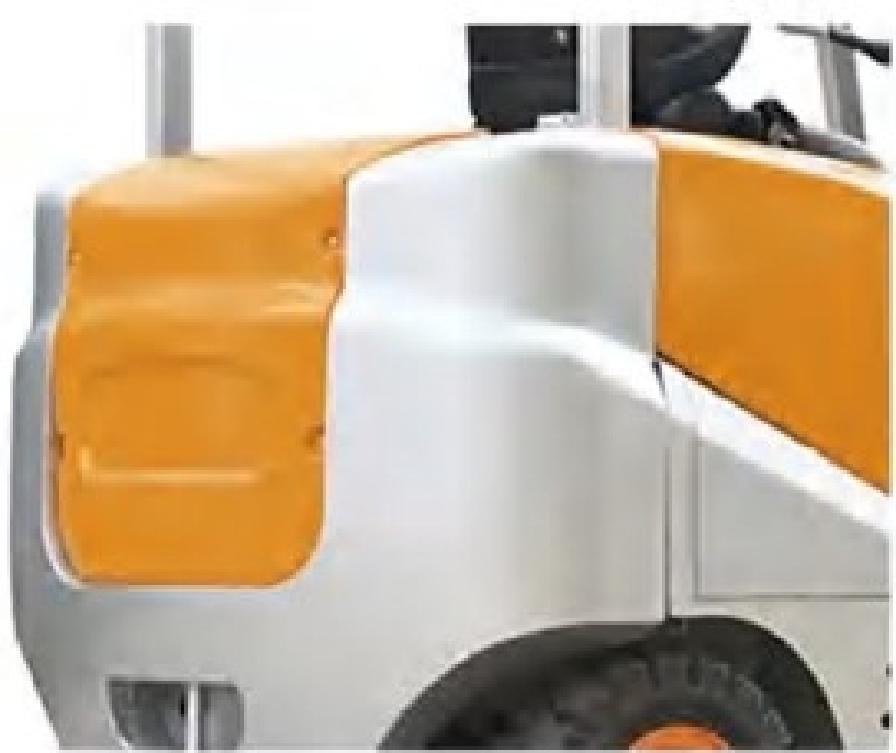

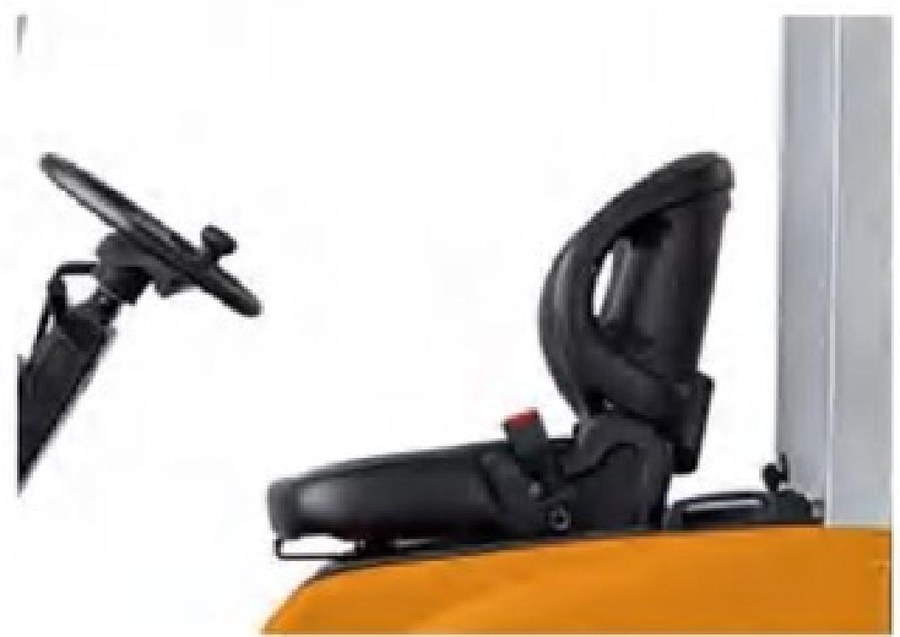

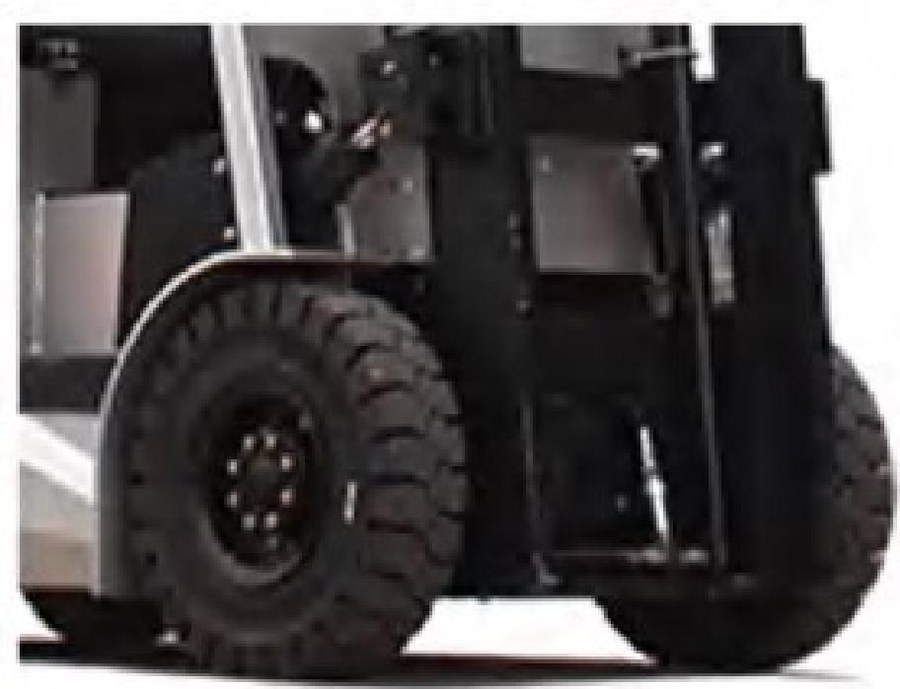

1.5–3.5 t sit-down counterbalance forklift. Solid tyres, Toyota seat, open cover for battery change.
Available models: CPD15 / 20 / 25 / 30 / 35
Standard specifications. Dimensions, capacity and lifting height can all be customised — tell us your requirements and we will quote accordingly.
| Parameter | Value |
|---|---|
| Rated load | 1500 / 2000 / 2500 / 3000 / 3500 kg |
| Load centre | 500 mm |
| Lift height | 3000 (standard), up to 6000 mm |
| Overall width | 1080 – 1194 mm |
| Turning radius | 2080 – 2200 mm |
| Tyre | Pneumatic / solid |
| Battery | 48V / 385–560Ah |
| Drive motor | 6.5 kW |
| Lift motor | 7.0 kW |
Send us your load weight, lifting height and aisle width. We will confirm the right configuration and send a quotation within 24 hours.
