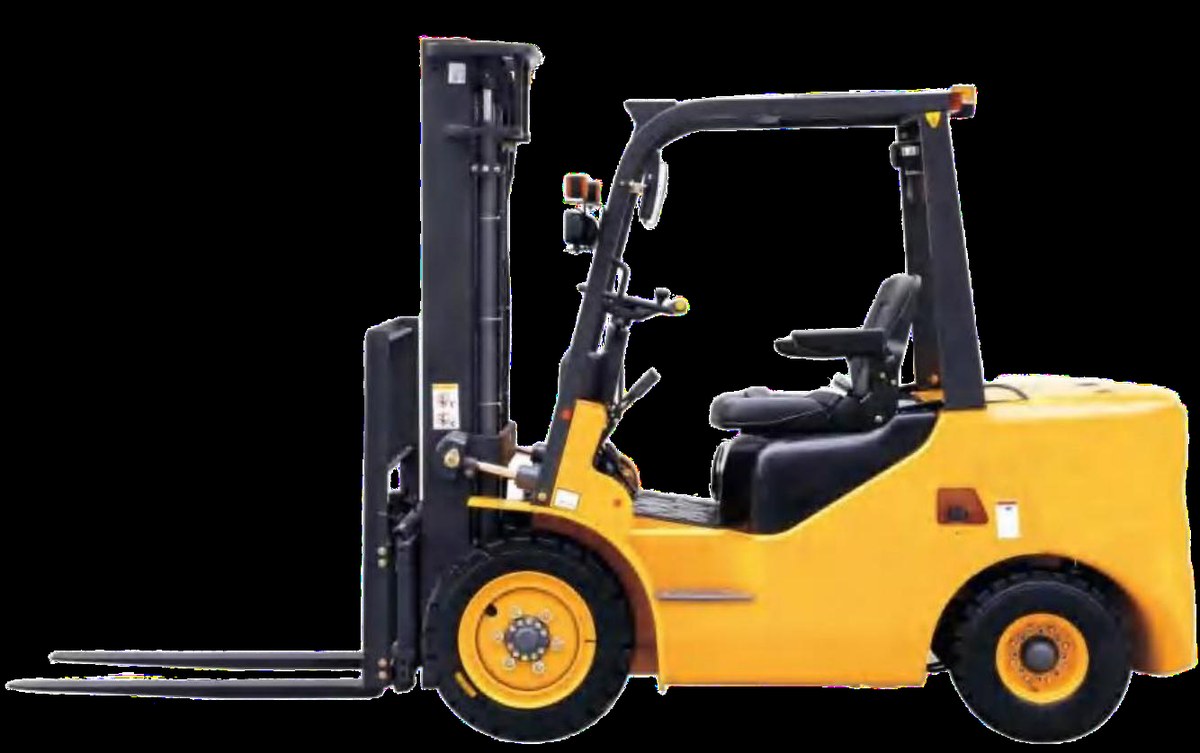

Fuel Forklift (Heavy Duty)

Diesel, gasoline or LPG. 3–5 t capacity with sealed wet disc brakes for the toughest duty.

Request a Quote → Email Us

Available models: CPC / CPCD series

3000 / 3500 / 4500 / 5000Rated load

500Load centre

3000Lift height

1220×150×50Fork size

Large opening angle for easy maintenance

Multiple engine options

Sealed wet disc brakes

Fuel cap cover of metal stamping parts

Adjustable speed hydraulic valve

MOQ 1 unitLead time 15-25 daysWarranty 12 monthsPacking Plywood case, export standard

Product Photos

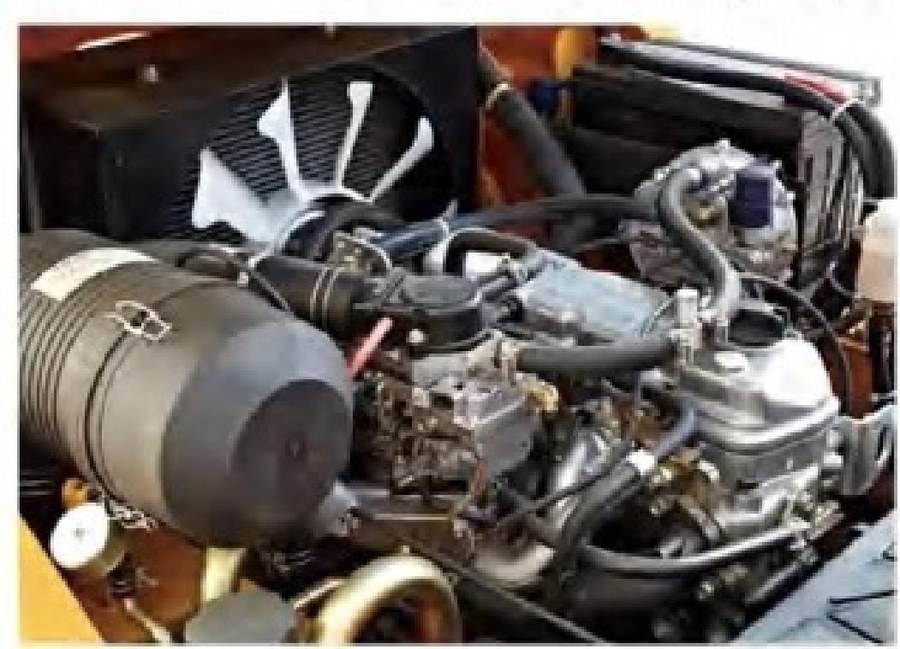

Fuel Forklift (Heavy Duty) Detail 1 — Detail 1

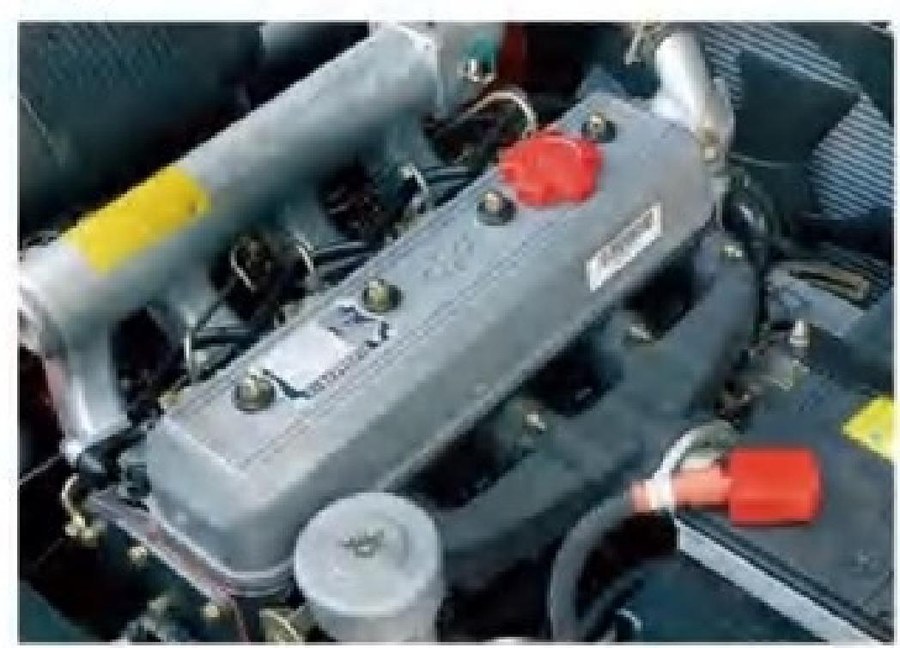

Fuel Forklift (Heavy Duty) Detail 2 — Detail 2

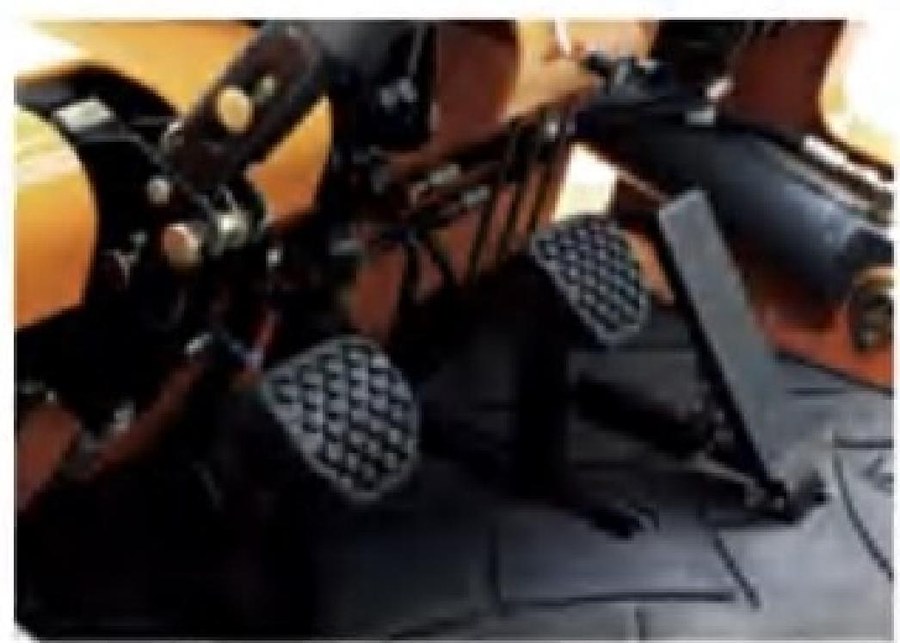

Fuel Forklift (Heavy Duty) Detail 3 — Detail 3

Component Layout

Fuel Forklift (Heavy Duty) — main components

Specifications

Technical Data

Standard specifications. Dimensions, capacity and lifting height can all be customised — tell us your requirements and we will quote accordingly.

Parameter	Value
Rated load	3000 / 3500 / 4500 / 5000 kg
Load centre	500 mm
Lift height	3000 mm
Fork size	1220×150×50 mm
Mast tilt	6 / 12 °
Engine	Diesel / Gasoline / LPG
Brake	Sealed wet disc

Applications

Typical Use Cases

✔

Outdoor yard & dock

✔

Heavy industry

✔

Construction material

✔

Port & logistics

Interested in the Fuel Forklift (Heavy Duty)?

Send us your load weight, lifting height and aisle width. We will confirm the right configuration and send a quotation within 24 hours.

Get a Free Quote Email Us

Specifications

Full Specifications

Complete specifications supplied with each model.

Parameter	Unit	CPD20	CPD25	CPD30	CPD35
Power Form				(D	iesel/Gasoline/LPG
Rated load		2000	2500	3000	3500
Load center distance		500	500	500	500
Lift height	mm	3000	3000	3000	3000
Forksize		107012040	107012040	107012045	107012045
Forkspacing outside	min/max	245/1030	245/1030	245/1100	245/1100
Front overhang distance		480	480	500	500
Overall length without forks		2500	2570	2680	2730
Total length with forks		3600	3670	3790	3790
Wheel width		1160	1160	1225	1225
Thegantry can'tlift the height		2050	2050	2080	2080
Heightafter gantry lifting		4000	4000	4110	4110
Safety rackheight		2150	2150	2200	2200
Minimum turning radius		2320	2380	2460	2510
Travel speed(no load/full load)		20/18.5	20/18.5	20/18.5	20/18.5
Liftingspeed(no load/full load)		510/450	510/450	510/450	510/450
Maximum climbing degree			20	20	20
Self-weight		3700	4000	4300	4500
Front Wheel			7.00-12-12PR	7.00-12-12PR	28*9-15-12PR
Rear Wheel			6.00-9-10PR	6.00-9-10PR	6.50-9-10PR
Frontwheelbase		970	970	1000	1000
Rearwheelbase		980	980	980	980
Wheelbase		1650	1650	1700	1700
Minimumgroundclearance of door frame		160/140	160/140	160/140	160/140
Frame(noload/full load)		150/130	150/130	145/125	145/125
Engine powerrating		31.2/2250	31.2/2250	37.4/2300	37.4/2300
Engine torquerating			143.7/1800	143.7/1800	171.2/1600
Engine Displacement		2065	2065	2488	2488
Number ofcylinders			4	4	4
Cylinder bore*stroke		89*83	89*83	89*100	89*100
