Three wheels, tiny turning radius, excellent stability. Ideal for tight indoor aisles.
Available models: CPD three-point series
Standard specifications. Dimensions, capacity and lifting height can all be customised — tell us your requirements and we will quote accordingly.
| Parameter | Value |
|---|---|
| Rated load | 1000 / 1300 / 1500 kg |
| Load centre | 500 mm |
| Lift height | 3000 mm |
| Turning radius | 1348 mm |
| Tyre | Polyurethane solid |
| Travel speed (laden/unladen) | 6.2 / 7.2 km/h |
| Battery | 24V / 300–400Ah |
| Drive motor | 2.5 / 3.0 kW |
Send us your load weight, lifting height and aisle width. We will confirm the right configuration and send a quotation within 24 hours.

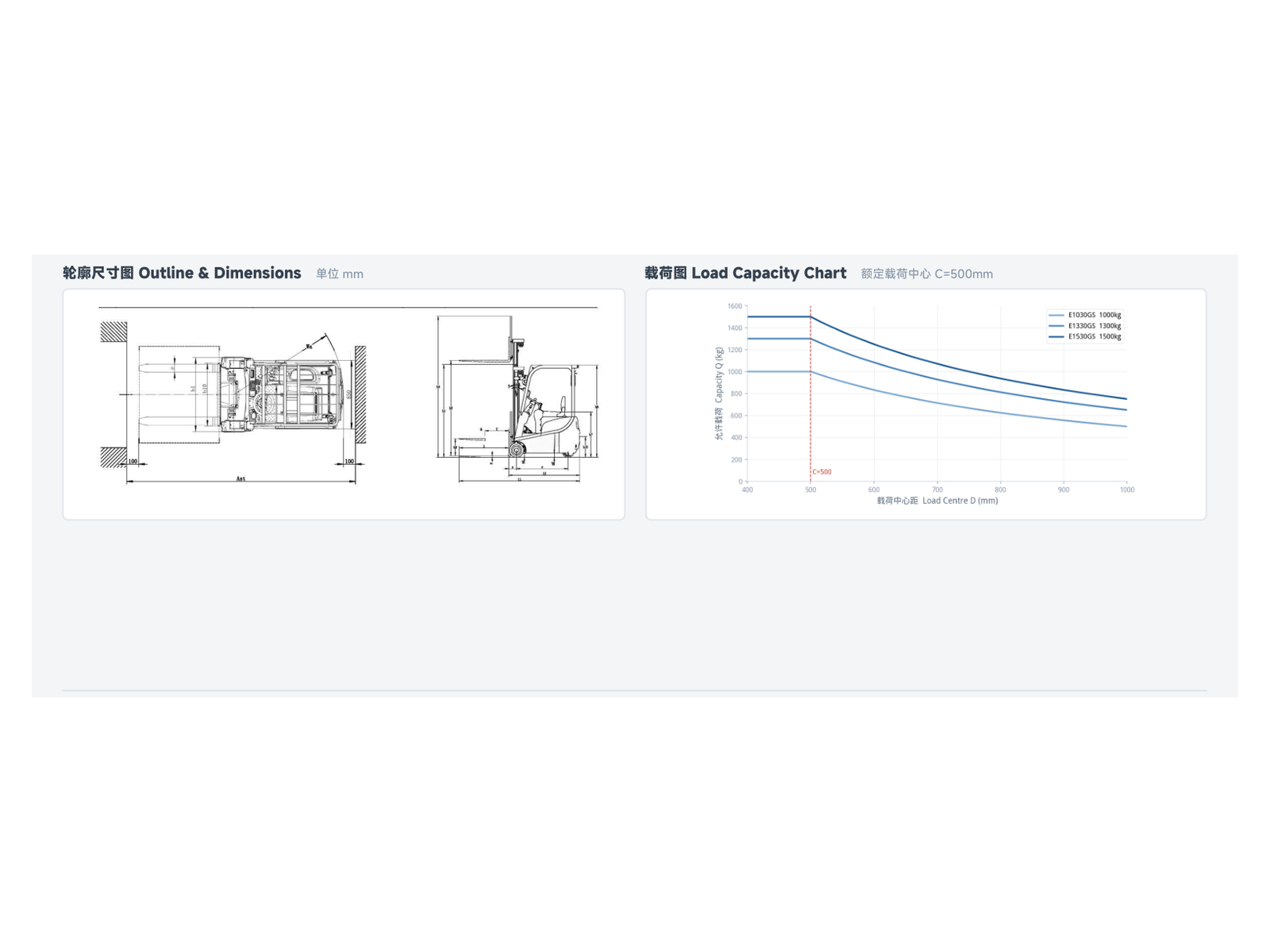

Complete specifications supplied with each model.
| Parameter | Unit | CPD10-30 | CPD15-30 |
|---|---|---|---|
| Driving Style | Seat | ||
| Rated load Load centerdistance | 1000 | 1500 | |
| Load centre distance | 500 | 500 | |
| Self-weight(with battery) | 1700 | 2150 | |
| Wheel size,rear(drive wheel) | 230x110 | 230x110 | |
| Wheel size,front | 305x127 | 305x127 | |
| Wheelbase in front | 752 | 752 | |
| Height ofgantry closure | 2035 | ||
| Lift height | 3000 | ||
| Max.height of the gantry during lifting | 3918 | ||
| Height of roofrack | 1930 | ||
| Forkheightwhen gantryis retracted | 35 | 35 | |
| Bodylength (without/with forks) | 11(mm) | 1610/2680 | |
| Body width | 850 | ||
| Fork dimensions | 35*100*1070 | 35*100*1070 | |
| Forks adjustable outerwidth | 210-585 | ||
| Ground clearance, min. | 60 | ||
| Turming radius | mm | 1425 | |
| Aisle width,pallet 1m*1.2m | mm | 2931 | |
| Liftingspeed(no load/full load) | 0.135/0.095 | 0.135/0.095 | |
| Descent speed(full/unloaded) | 0.085/0.120 | 0.085/0.120 | |
| Drive motor power | 1.5 | 2.5 | |
| Lifting motorpower | 3.0DC | 3.0DC | |
| Battery voltage/capacitance Battery charger | 24/270 | 24/300 |
