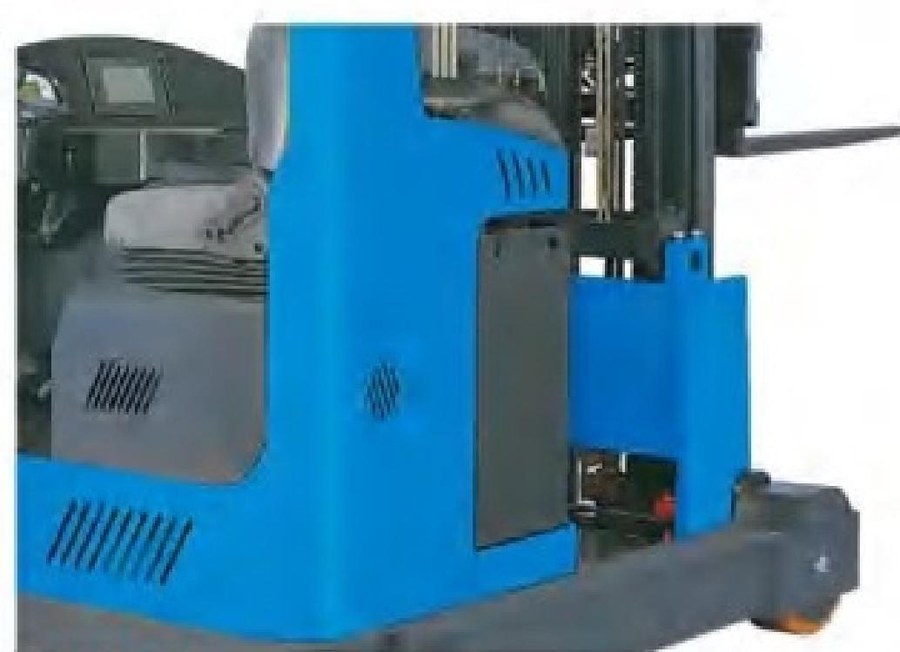

Travels forwards, backwards and sideways with dual-motor drive and dual steering.
Available models: Four-way series
Standard specifications. Dimensions, capacity and lifting height can all be customised — tell us your requirements and we will quote accordingly.
| Parameter | Value |
|---|---|
| Rated load | 1500 / 2500 kg |
| Lift height | Up to 8000 mm |
| Drive | Dual AC motor |
| Travel directions | 4-way |
Send us your load weight, lifting height and aisle width. We will confirm the right configuration and send a quotation within 24 hours.
Complete specifications supplied with each model.
| Parameter | Unit | CSD16 | CSD20 |
|---|---|---|---|
| Drive method | Electric | ||
| Driving Style Rated load | (Seat/Station Driver) | ||
| Load centerdistance Self-weight | 500 | ||
| Wheels | Solid Core Tires | ||
| Wheel size,frontwheel | 406*152 | ||
| Mast/Fork forward/Backward tilt Mast Lift height | h3(mm) | ||
| Overhead guard height | 2100 | ||
| Seat height Traction pin height | h10(mm) | 990 | |
| Overalllength Length offorksurface | 12(mm) | 2890 | |
| Body width | 1622 | ||
| Fork dimensions | 35*100*1070 | ||
| Fork width | 1560 | ||
| Ground clearanceatthe lowerend ofthe doorframe | mm | 90 | |
| Ground clearance at wheelbase center | 100 | ||
| Aisle width for pallets 1mx1.2mlengthways | mm | 3150 | |
| Turming radius | mm | 1500 | |
| Lifting speed,full load/no load | 0.29/0.45 | ||
| Descent speed,full/no load | 0.45/1.43 | ||
| Climbing capacity,full load/noload | 15/20 | ||
| Battery voltage/rated capacity | 48/490 | 48/490 |
